Зоран

avatar

Број на мислења : 3671

ПишувањеПредмет: Систем за интегрирано војување   26/12/2012, 09:40

Од форумот МЦМ...усер . Кљифт.. типот растура во оваа област

еве што може да ни понудат нашите стратешки сојузници.

kljift напиша:

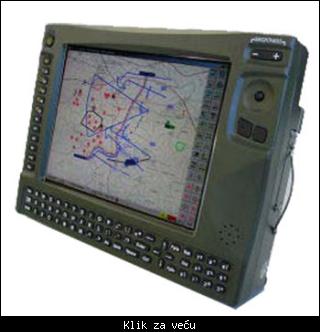

ETC Mark IV


Rugged Vehicle Computer

The ETC Mark IV is an Elbit Systems of America rugged space saving vehicle computer for use in demanding environmental conditions. Equipped with a 10.4” high-brightness display and combined with a waterproof, dual-core computer, built-in GPS and modem, the ETC Mark IV is the MIL customizable rugged solution of choice.

Features:

Ergonomic and slim design
Water-proof, dual-core computer
10.4” high brightness display
84 key keyboard and 10 function key
Built-in pointing device with two mouse keys
Built for operation and survivability in extreme conditions
Up to 2GB RAM
PCMCIA PC card slot
Solid state hard disk
Internal Li-lon battery
Built-in GPS
Built-in modem
Commercial and military USB connector

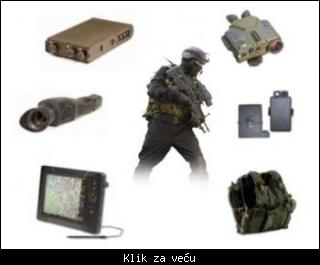

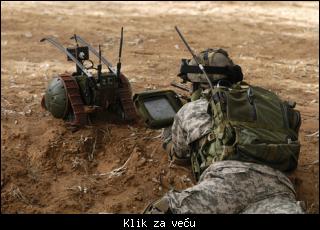

DOMINATOR (Integrated Infantry Combat System (IICS)


Comprehensive War Fighter Solution

Asimetrično ratovanje, konflikti niskog inteziteta, i druge specijalne operacije redefinisale su moderno bojište za raspoređene vojnike. Kompleksni urbani i podzemni tereni, prijetnja "prijateljske vatre", te kratak "životni vijek" ciljeva zahtjevaju superioran nivo situational awareness - a.

Zahtjev za jasnim i preciznim sagledavanjem bojišta, zahtjeva od svih jedinica i sistema kontinuiranu povezanost. Poboljšani komandno - kontrolni proces i real-time odluke smanjuju vrijeme reakcije. Propisno selektovanje informacija uz pravilnu koordinaciju značajno unapređuju efikasnost i otpornost angažovanih snaga.

DOMINATOR je integrisani pešadijski borbeni sistem. Baziran na komponentama hardvera i C4I aplikacija razvijenih od strane Elbit porodice, DOMINATOR omogućava punu situational awareness od nivoa pešadijskog bataljona do individualnog vojnika. Sistem dramatično skraćuje sensor-to-shooter loop sa brzinom bez presedana uvećavajući borbenu efikasnost raspoređenog vojnika.

DOMINATOR obezbjeđuje pešadijsku jedinicu sa net-centric integrisanim informacionim solucijama omogućavajući:

pogled na zajedničku real-time operativnu sliku na personalnom displeju
slanje i primanje podataka o ciljevima i zadacima
prenosa slika i podataka o pozicijama do komandnog mjesta
efikasno zatvaranje sensor-to-shooter kola
upravljanje svim fazama borbe uključujući planiranje i debrifing

Dominator sistem integriše nekoliko Elbitovih naprednih solucija, uključujući RAPTOR ojačanu, tjelesnu, kompjutersku jedinicu, TORC2H –D C2 sistem za mrežno dijeljenje kritično važnih podataka i napredni PNR-1000A laki, personalni, mrežni radio, koji omogućava kontinuirane mrežne kontakte, naprednu navigaciju i C2 kapacitete. Dominator-LD kao modularan sistem dozvoljava malom broju komponenti konfigurisanje radi ispunjavanja raznih operativnih zahtjeva korisnika sa unapređenjem mobilnosti zahvaljući reduciranoj veličini i težini manjoj od 1 kilograma.

Druga opcija koja se može dodati sistemu je JS okularni sistem, ručni displej koji predstavlja opštu situacionu sliku kroz korišćenje napredne optike sa minimalnom distorzijom, širokim vidnim poljem i nulte emisije svjetlosti tokom noćnih operacija.

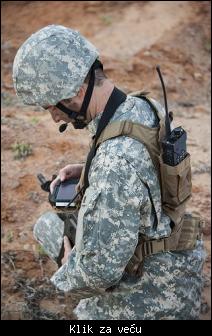

PNR 1000 laki, personalni mrežni radio i Raptor ojačana tjelesna kompjuterska jedinica.


Jedan od JS okularnih naprednih optronskih sistema sa širokim vidnim poljem, predstavkom kompletne situacione slike i nultom emisijom svjetlosti tokom noćnih operacija.


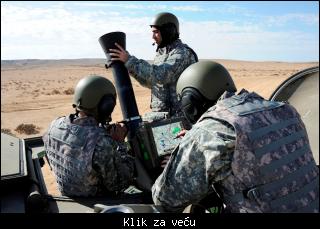

Vatrena podrška na modernom digitalizovanom bojnom polju i zaštita jedinica u pokretu bazirana je na brzoj i efikasnoj sensor-to-shooter petlji. Elbitov Dominator omogućava kompletnu situacionu sliku od bataljonskog nivoa da individualnog vojnika značajno skraćujući sensor - to - shooter loop. Kao pešadijski integrisani borbeni sistem, Dominator je naročito fokusiran na artiljeriju i minobacačke jedinice (ATHOS i ATMOS te Kardom minobacače) uz projekte usmjerene na 30mm unmanned turrets (UT), precision-guided munitions (PGM), Hermes 900 and Skylark I-LE UAS, Combat NG, IR Centric, Engager, PAWS, DIRCM...
Вратете се на почетокот Go down
Зоран

avatar

Број на мислења : 3671

ПишувањеПредмет: Re: Систем за интегрирано војување   26/12/2012, 22:44

2 дел
ај кој сака пиво нек познае што имаме ние од ова?

kljift напиша:
Optronski osmatračko - nišanski sistemi kao komponente Dominator Integrated Infantry Combat System (IICS):

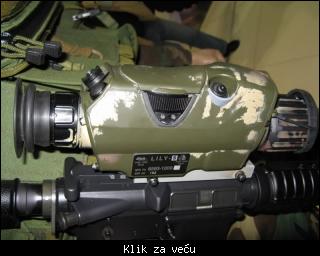

- LILY-S is an un-cooled lightweight short-range thermal weapon sight (STWS) and monocular camera for small arms, enabling users to detect, acquire and engage targets day/night in adverse weather.



- CORAL-CR & Mini Atlas is a hand-held thermal imaging camera with targetting capabilities and precision electronic goniometer for enhanced target acquisition.

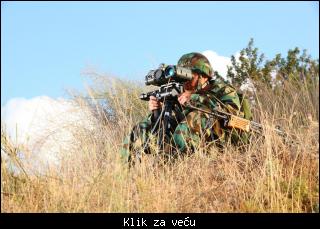

CORAL is a lightweight, high resolution hand-held dual-FOV personal thermal imaging camera that provides excellent picture quality for infantry, scout and perimeter defence missions.


Coral CR + Mini Atlas

- PLLD is a portable lightweight laser designation system for day/night laser designation to stationary or moving targets, for all types of laser-guided munitions.



- COYOTE 45/75 is a very lightweight, un-cooled, medium-range thermal imaging scope that uses thermal detections to produce visible video images for reconnaissance and observation, under dust, fog, smoke and night time conditions.

- Long-View CR is a versatile combined day/night system for very long-range observation and target acquisition, for use by intelligence and surveillance units, special forces and reconnaissance vehicles.

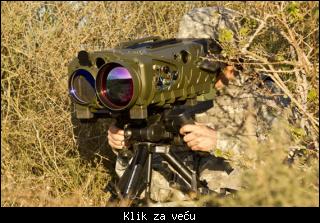

Long View CR.

- MARS reflex sight is based on the cutting-edge concept of combining an innovative, high-precision reflex sight with a laser pointer, significantly enhancing the operator's ability to quickly acquire and engage targets.

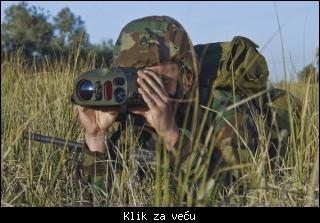

Mars - Hand Held Thermal Imager with Taget Equisition Cap

AIM weapon-mounted laser pointer family are advanced, battle-proven laser-based aiming systems designed to support high-precision instantaneous fire, especially in unexpected scenarios.

- COYOTE Pocket Scope (PS) is a very lightweight high-performance un-cooled thermal hand-held pocket scope that significantly boosts the war-fighter’s capabilities, round-the-clock, in all-weather-conditions.



- Mini N/Seas is a compact, monocular night vision system that offers high-resolution and a clear, bright image in adverse environmental conditions.

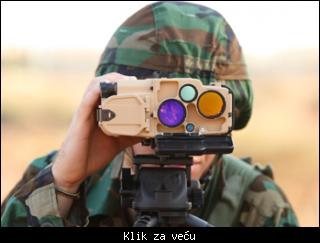

- Rattler G is a hand-held, dismounted miniature coded target designator/marker, enabling combatants to bring effective fire to bear on hostile targets.


Rattler G - Short range desigantor

- MARS is an un-cooled, hand-held dual field of view FLIR thermal imager with target acquisition capabilities, featuring extremely lightweight and compact dimensions.

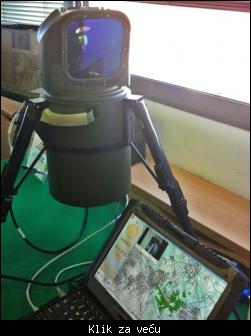

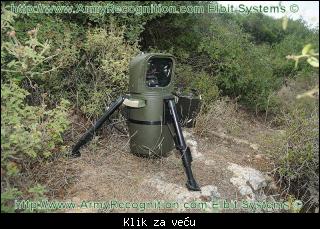

- Engager is an advanced covert remote reconnaissance and targetting system designed for the use of intelligence, infantry and special forces units for long-range intelligence gathering, targetting and laser-guided missions.

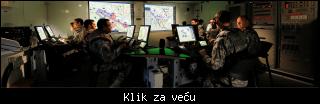

Elbit Systems Digital Army Programme-1



Elbit Systems C4I softverska solucija za pešadiju, zajedno sa decenijskim iskustvom Tadiran Communications, nudi intezivne, battle-proven ekspertize za trenutno najčešće ratne scenarije. Sveobuhvatne komunikacije podešene i demonstrirane u specijalnoj demo room uključuju sledeće sisteme:

Tadiran SDR-7200 software-defined radio.

Tadiran SDR-7200 HH is a hand-held, lightweight software-defined radio for the dismounted soldier.

Tadiran PNR-1000A is a Personal Network Radio providing on-the-move situational awareness.

MIPR (Military IP Radio) is a tactical IP radio delivering high-speed broadband data communications to the battlefield.

MRS-R is a military satellite router, scalable in performance and capability, making it an optimal BLOS communication solution for all the levels of the command.

GRX-4000 is a latest generation dual-band high-capacity line-of-sight (HCLOS) broadband radio relay system.

Bro@dnet is the first fully-operational, battle-proven military wireless infrastructure solution that enables secure broadband communications, integrating all echelons of the military.




Elbit Systems Digital Army Programme-2



Elbit Systems Land i C4I je pionir u Combat Vehicle integracionim sistemima i snadbjevač sa više od 7,000 sistema i pod - sistema za glavne borbene tenkove, oklopna vozilai modernizacione programe širom svijeta.

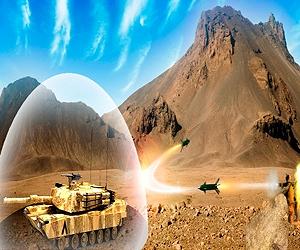

- EoShield is a Vehicle IR Countermeasures system that provides soft protection against anti-tank ground missiles. The system provides 360-degree protection shield for a wide variety of ground platforms.



- Elbit System-Kinetics will showcase the following products and systems: Auxiliary Power Unit (APU), Life Support System (LSS) and Individual Crew Cooling System.



Elbit Systems - UAS solutions



Napredni UAV sistemi, zemaljske kontrolne stanice i obavještajni upravljački centri.

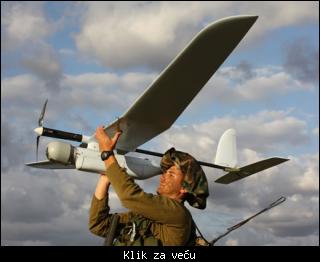

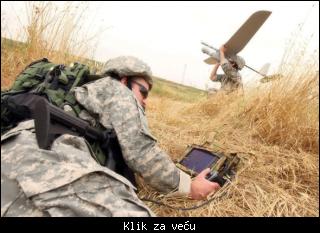

Skylark 1 LE + Dominator.
Skylark I-LE (Long Endurance) derivat je starijeg Skylark I UAS, i prisutan je u nekoliko armija širom svijeta. Kao dodatak glavnim unapređenjima, Skylark I-LE ima unaprijeđenu izdržljivost (tri sata) i uvećanu robustnost. Prilagođen upotrebi u Armiji SAD.
"As part of the preparation of the Skylark 1LE for the U.S. user UAS Dynamics introduced a U.S. datalink, compatible with U.S. military communications standards and security levels. Skylark 1LE can now transmit video directly to U.S. forces using standard video terminals (Rover). According to Klein, UAS Dynamics plans to add more processors on board is also being increased, increasing processing power to support on-board computation of automatic tracking, change detection over a wide area and complex geo-location algorithms supporting advanced networked warfighter applications."

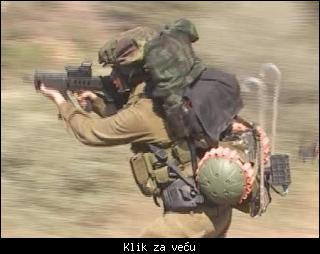

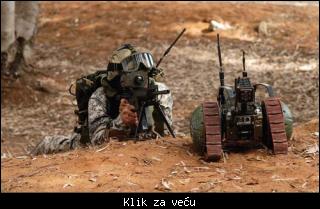

Viper robot + Torc2h i PRC-710MB.







Elbit VIPer robot pruža pogled na bojno polje iza uglova i uskih prostora. Portabilan i visokomobilan, VIPer robot konfigurabilan je za razne misije zahvaljujući mogućnosti dodavanja senzora, modula i tereta. Kompaktne kontrole montirane su na opremi vojnika. Sam sistem uz pomoć Torc2h i PRC-710MB komunikacionih sistema integriše se sa komandnim nivoom i znatno skraćuje sensor - to - shooter petlju.
Вратете се на почетокот Go down
Alvar

avatar

Број на мислења : 7725

ПишувањеПредмет: Re: Систем за интегрирано војување   30/12/2012, 20:35

Еве еден интересен производител од оваа област Зоки.
http://bdatech.com/mts
Прочепкајтe по System Components... доста интересен систем на комуникации.

Припадник на специјална единица од Франција со овој систем:




_________________
Si vis pacem, para bellum
Вратете се на почетокот Go down
Зоран

avatar

Број на мислења : 3671

ПишувањеПредмет: Re: Систем за интегрирано војување   30/12/2012, 21:26

Фрапатно Алвар а типоот на МЦМ исфрла уште податоци.
го бива типот.

Погледнете

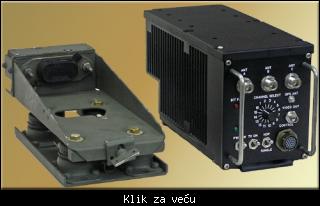

V-TVR - Vehicular Tactical Video Receiver


Transportable Drop-In Tactical Video Receiver

V-TVR Vehicular Tactical Video Receiver specifično je dizajniran za korišćenje u mobilnim kopnenim jedinicama. Upakovan u kućištu standardnog vojnog vozilnog radio seta, kompletiran samomontirajućom osnovom, čini instalaciju V-TVR jednostavnom na bilo kojem vojnom vozilu (džipovi, oklopna vozila, tenkovi i slično). Uređaj se spaja na slobodni konektor komunikacionog bloka vozila.

Komandiri i trupe kao krajnji korisnici primaju real-time podatke za praćenje ciljeva, situational awareness - a, procjenu štete, "over-the-hill" izviđanja i praćenja, i sverakursnu podršku upravljanju bojnim poljem. V-TVR lako se integriše u Command and Control system radi dodavanja sposobnosti prikupljanja video podataka.

Efikasnost borbenih posada značajno je unapređena i proširena, preciznijim usmjeravanjem vatrene moći te jasnije situaciuone slike neprijateljskog rasporeda.

Zahvaljujući pristupu off-platform sensorima, komandno - kontrolnim ešalonima omogućeno je donošenja odluka velikog direktnog značaja.

V-TVR Concept of Operations



----------- Dopuna: 28 Dec 2012 23:58 ---------

Tadiran Spectralink - StarLink Data Link System for Tactical UAVs

StarLink data link sistem obezbjeđuje komandire malih jedinica sposobnostima izviđanja i praćenja prostora iza brda, zgrada, i sličnih objekata kao i podršku za raspoređene jedinice, izviđače, i specijalne jedinice nivoa bataljona i ispod.

Tadiranov novi StarLink data link sistem moderan je koncept prikupljanja obavještajnih podataka, naročito dizajniran za komunikaciju i displej videa i drugih tipova informacija, prikupljenih sa mini-UAVa, u realnom vremenu i bliskim zonama od interesa. Sistem je otporan na ometanja sa mogućnošću provizornog šifriranja podataka. Kao mali potrošač energije sposoban je za dugotrajne misije uz mogućnost integracije sa raznim komandno - kontrolnim sistemima.


StarLink Concept of Operations




Low Weight & Power Consumption = Extended Range & Endurance

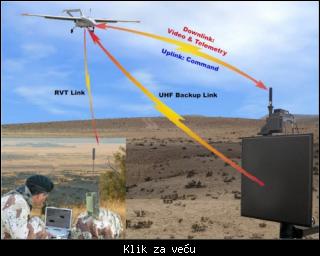

Tadiran Spectralink’s StarLink is a point-to-point full duplex digital data link system, specifically designed for use with midi and mini-Unmanned Aerial Systems (UAS). StarLink provides for simultaneous transmission of command and control signals, and reception of video and telemetry data, between the UAS and a Ground Control Station (GCS).

Immune to jamming and interference and with provision for encryption, StarLink securely delivers real-time video imagery captured by the UAS payload straight to the end users in the field and provides the best inner-link solution for interference, multi-path, and coexistence. Added to its low weight, StarLink’s remarkably low power consumption allows for extended mission range and endurance.

StarLink employs a Time Division Duplexing (TDD) method that can operate at Single Frequency (SF) or Frequency Hopping (FH) mode, to achieve very high spectral efficiency (4 MHz per channel); uplink and downlink traffic can share the same frequency while using only the part of the bandwidth required by each type of traffic.

StarLink´s very compact Air Data Terminal (ADT) consists of a couple of Circuit Card Assemblies (CCAs) housed in a light metal case. In the C-Band version, the ADT also includes an equally compact RF Head module.


StarLink


C-Band StarLink RF Head


Flexible configurations for a variety of tactical applications

The StarLink is available in S, L, and C-band versions, allowing for use in all types of midi and mini-UAS applications, at tactical ranges from 0 and up to 100 kilometers. Starlink’s compact and easily transportable Ground Data Terminal (GDT) is mounted on a rotating tracking system, which affords it single or dual-axis tracking capability and further extends its impressive effectiveness.


StarLink Single-Axis Tracking GDT



StarLink Dual-Axis Tracking GDT

Another advantage offered by StarLink is the ability to deliver real-time, broadcast quality imagery and telemetry directly to deployed tactical forces, thus creating a common visual language amongst all forces in the battlespace. Using the Remote Video Terminal (RVT) link, combined with Tadiran Spectralink’s tactical video dissemination systems, the StarLink Digital Data Link System enables field commanders and dismounted troops to be on the receiving end of real-time data for target tracking, situational awareness, damage assessment, “over-the-hill” reconnaissance and surveillance, and all-round support for battlefield management.
Вратете се на почетокот Go down
Зоран

avatar

Број на мислења : 3671

ПишувањеПредмет: Re: Систем за интегрирано војување   9/1/2013, 20:25

Типов растура

http://www.mycity-military.com/Pesadijsko-naoruzanje-municija-i-oprema/Komandno-komunikacioni-uredjaji_7.html
Вратете се на почетокот Go down
Зоран

avatar

Број на мислења : 3671

ПишувањеПредмет: Re: Систем за интегрирано војување   10/1/2013, 00:06

ЕЛБИТ
повторно
мојата почит

Elbit Systems is introducing a new, tactical manpack software defined radio, extending its family of SDR radios to vehicle mounted and dismounted applications. The new backpackable software defined Military IP Radio (MIPR) weighs about four kg and is fully developed by Elbit Systems.

Earlier in 2010 Elbit Systems introduced the SDR-7200 - an encrypted, frequency-hopping software defined radio designed for operation in tactical land, air and naval platforms. Designed and developed by the company’s Land and C4I-Tadiran division, the new radio offers flexible interoperability with different networks, services, coalition forces and agencies that make their waveforms available for joint operations.

Eliminating potential compromise of data security, the radio integrates an inherent firewall, separating “black” from “red” information, allowing the secure transfer of data across secure networks while maintaining access to other systems. The new radio allows simultaneous, single network voice and data operation using only 25Khz of the VHF bandwidth, allowing maximum data rate of 115.2kbps. Simultaneously the radio can transfer multi-megabyte data rates over broadband links. The new radio enables multiple operators to communicate and transfer data, on one or more networks, simultaneously, allowing for the reduction of radios held within a battle group, potentially saving weight and volumetric space inside vehicles, surface vessels and aircraft.

This new tactical manpack radio can transfer data at rates up to 13.3 Mbps, enabling forward deployed commanders, intelligence and target acquisition elements to access wideband information networks, facilitating the transfer of live video, voice and data over IP networks. MIPR has diverse operational capabilities support both LOS and NLOS connectivity and operation during mobility at speeds of up to 300 Km/h. A Voice over IP (VoIP) radio, MIPR provides full-duplex voice communication with active noise reduction, selective calling, priority break-in and the capability to hear four voice groups simultaneously.

MIPR provides connectivity for dozens of members per network. The system supports a variety of configurations, including point-to- point (PtP), point-to-multipoint (PtMP) and mobile ad-hoc networks (MANET). The radio has built-in Electronic Counter-CounterMeasures (ECCM) employing jammer rejection, bit spreading and frequency-hopping. It also supports secure communication through advanced encryption algorithms.

Elbit Systems developed the SDR radios as part of an Israeli MOD program since 2005. Initial systems have been delivered in 2010 and are equipping military formations at tactical levels, as part of the Digital Army Program (DAP).

норамлно кљифт се распишувал па да ви пренесам.
Вратете се на почетокот Go down
Гостин
Гостин



ПишувањеПредмет: Re: Систем за интегрирано војување   10/1/2013, 01:40

Неколку вакви ни се потребни за чување на граница и патролирање на северозападните делови на Македонија

Predator Drone

https://www.youtube.com/watch?v=msHJLwYWX30


Вратете се на почетокот Go down
Alvar

avatar

Број на мислења : 7725

ПишувањеПредмет: Re: Систем за интегрирано војување   10/1/2013, 10:41

И да имаш кеш, америте нема да ти продадат вакви.

_________________
Si vis pacem, para bellum
Вратете се на почетокот Go down
Зоран

avatar

Број на мислења : 3671

ПишувањеПредмет: Re: Систем за интегрирано војување   10/1/2013, 13:17

Alvar напиша:
И да имаш кеш, америте нема да ти продадат вакви.
може ако им дозволиш они да си ги летаат.
Вратете се на почетокот Go down
Зоран

avatar

Број на мислења : 3671

ПишувањеПредмет: Re: Систем за интегрирано војување   10/1/2013, 20:34

Рафаел ( војувалиштето стана дигитално)




Tactical Broadband Network for Ground Forces

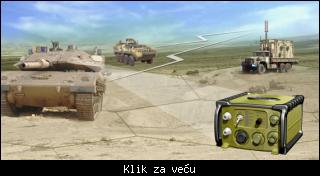

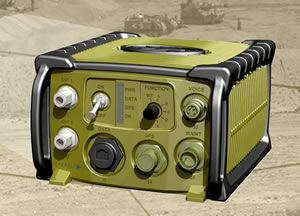

TacMAX Family of base and mobile stations deliver high quality broadband video, data & voice services. TacMAX is based on the most advanced network technology that exists today cellular 4G technology guaranteeing QoS mechanisms.

The TacMAX unique design leverages all the benefits of cellular 4G technologies while fully adapting it to battlefield requirements & threats.
In addition, it offers seamless integration with IP networks and backhaul systems. Signal C2 software is used as a planning software tool for all deployments.
TacMAX supports fast system deployment, extended range, mesh capabilities, EW and more. TacMAX serves a wide variety of mobile station subscribers – military vehicles, portable or fixed/deployable sites.

Main features:
· Broadband, field wireless system
· Up to 45 Mbps data rates per sector
· Network immunity & redundancy
· Independency in the BS level
· Fast deployment
· Range: above 12 km in NLOS conditions
· Configurable DL:UL ratio
· OFDM modulation ensures reliable communication in dense urban &
Rural areas





TacMax utilizes the latest commercial off the shelf (COTS) 4G WiMAX technology, redesigned and packaged for military use, supporting mesh capabilities, advanced security and electronic-defense (ECCM) capabilities. The system is designed for rapid deployment and agility, using mobile station subscribers mounted on military vehicles, portable, fixed or deployable sites.

The system comprises base stations, relay stations, mobile stations or ship borne units. TacMax can support high data transfer rate of up to 45 Mbps per sector, delivering high quality broadband video, data and voice services on-the-move. The end units are designed for military standards, capable of integration in tactical, armored vehicles.

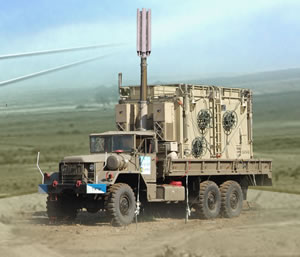

Tacmax base station operating the rapid deployable WiMAX network in the field.

Rafael is designing the system to be rapidly deployable, supporting division and brigade level communications with broadband data networking, as well as providing broadband connectivity for coastal and border security networks. The system can also be used to enhance current mobile subscriber requiring ultra-high data rates.

The system was displayed earlier this year in India and created significant interest.









Broadband Highway for Israeli BMS (Elbit Systems)

Broadband data communications channel dubbed 'HighWay', supporting tactical battle management systems (BMS)

The IDF has begun integrating high capacity IP data networking in Merkava armored battalions operating Battle Management Systems (BMS) systems. Both systems were developed by Elbit Systems. The new wirelsess communications channel employs a low-power, ‘stand-alone’ encrypted radio operating in the S-band range defined as ‘Industrial, Scientific and Medical (ISM)’. The tactical radio is designed for short ranges communications. The new unit augments the tactical network radios operating in the tank, which remains the primary voice channel.



The new data channel supports the BMS with higher capacity data transfer, accelerating the transfer of commands, reports, and accelerating the refresh rate of situational updates from minutes to seconds. In the future, the IDF plans to introduce the new SDR-7200 Software Defined Radio which supports both broadband data and voice communications waveforms, along with other types of communications.

Elbit Systems’ WIN BMS is designed to support tactical units at battalion level and below, supporting all the operational tasks, including managing direct fire engagement & maneuver, management of indirect fire support, operational planning, intelligence and logistics. Elbit Systems was selected by the Israel Ministry of Defense to serve as prime contractor for the IDF program of Battle Management Systems for Battalion Combat Teams.



Elbit Systems has developed the HighWay S-band wireless broadband network to provide high speed data communications over short ranges, supporting tactical wireless data networks.

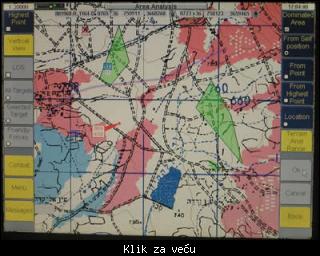

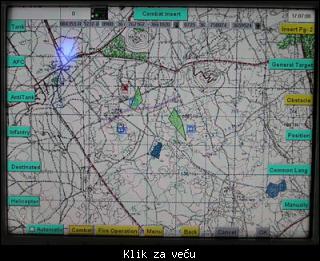

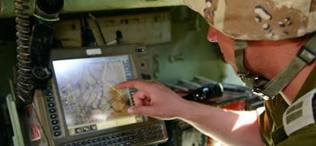

Weapon Integrated Battle Management System - WINBMS


Commanders-crt

Вратете се на почетокот Go down
